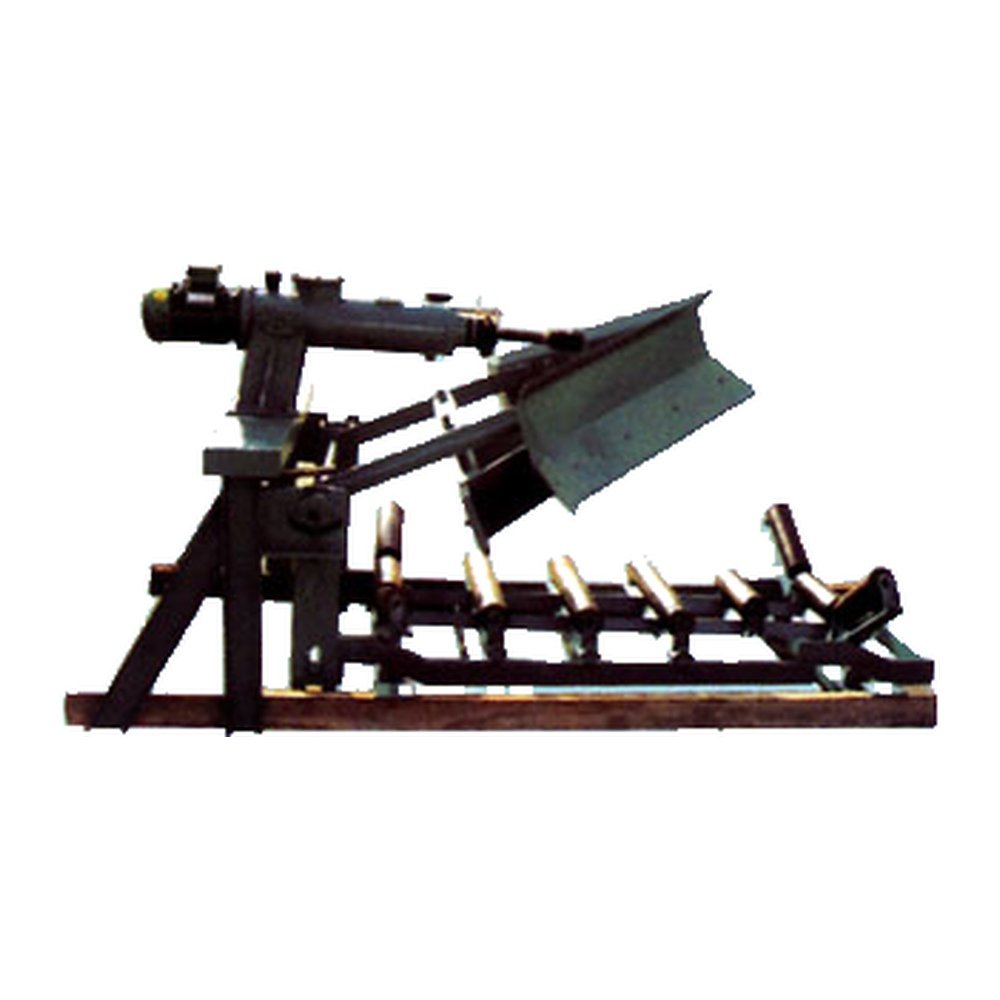

Electro-Hydraulic Plow Discharger
HSX DT(II) Series electro-hydraulic plow dischargers provide reliable, automated intermediate diversion of bulk materials from continuous belt conveyors. Featuring twin-acting DYT actuators, an automatic belt-contour lifting carrier, and high-abrasion polyurethane blade scrapers, the system ensures 100% clean material diversion without belt scuffing or premature wear.
Model Series & Engineering Parameters 6 Standard Belt Sizes
| Model Series | Belt Width (mm) | Actuator Model | Thrust (kN) | Plow Type | Discharge Capacity (t/h) |
|---|---|---|---|---|---|
| DT-B650 | 650 mm | DYT-500-300 | 5.0 kN | Single / Double-Sided | 150 – 350 t/h |
| DT-B800 | 800 mm | DYT-1000-400 | 10.0 kN | Single / Double-Sided | 300 – 650 t/h |
| DT-B1000 | 1,000 mm | DYT-2500-500 | 25.0 kN | Single / Double-Sided | 600 – 1,200 t/h |
| DT-B1200 | 1,200 mm | DYT-2500-600 | 25.0 kN | Single / Double-Sided | 1,000 – 1,800 t/h |
| DT-B1400 | 1,400 mm | DYT-5000-750 | 50.0 kN | Double-Sided V-Plow | 1,500 – 2,500 t/h |
| DT-B1600/B2000 | 1,600 – 2,000 mm | Dual DYT-5000 Sync | 100.0 kN | Heavy Double V-Plow | Up to 3,800 t/h |
Ordering Nomenclature Guide: DT(II) - [Belt Width B mm] - [Discharge: D-Double / S-Single] - [Plow Angle: 45/60] - [Actuator Model] - [Ex].
Engineered for Clean In-Line Belt Material Discharge
HSX plow dischargers eliminate conveyor downtime by allowing on-the-fly material switching into silos, hoppers, and bypass transfer chutes.
Dynamic Belt Flatting Lift Mechanism
Synchronized lift roller carriage flattens the troughed belt contour into flat contact before the blade engages, preventing edge gouging.
Variable Spring-Tension Polyurethane Blade
Segmented high-hardness polyurethane scrapers conform tightly to the running belt, delivering zero residual carry-over.
Dual DYT Electric-Hydraulic Thrust Drive
Integrated sealed electro-hydraulic actuators provide non-jamming blade drop and rapid lifting with hydraulic self-locking.
Remote Automation Interlocking
Equipped with magnetic limit switches and control solenoids compatible with DCS/PLC automated batching control.
Proven in Severe Plant Environments
Delivering high thrust and zero-drift actuation across critical heavy industrial facilities.
Coal Bunkers & Thermal Power
Tripper-alternative silo charging above boiler coal bunkers and raw fuel storage bays.
Mining & Ore Processing
Secondary crushing bypass routing and multi-silo distribution for high-abrasion ores.
Cement & Clinker Logistics
Limestone pre-blending lines and intermediate clinker transfer bin loading.
Port Bulk Terminals
High-capacity shiploader bypass and continuous barge-to-stockpile belt discharge.
