Heavy-Duty Vibrating Feeder
HSX GZD Series heavy industrial vibrating feeders deliver steady, controlled volumetric feed from storage hoppers, surge bins, and stockpiles into crushers, conveyor belts, and screening lines. Designed with heavy reinforced structural troughs and integrated grizzly bars, the GZD Series pre-screens fines while feeding massive abrasive boulders smoothly.
Model Series & Engineering Parameters 5 Heavy Feeder Models
| Model Series | Trough Size (W x L mm) | Max Feed Size (mm) | Capacity (t/h) | Vibrating Motor (kW) | Trough Weight (t) |
|---|---|---|---|---|---|
| GZD-850×3000 | 850 x 3,000 mm | 300 mm | 80 – 160 t/h | 2 x 1.5 kW | 2.8 t |
| GZD-1000×3600 | 1,000 x 3,600 mm | 450 mm | 150 – 300 t/h | 2 x 2.2 kW | 3.9 t |
| GZD-1100×4200 | 1,100 x 4,200 mm | 500 mm | 200 – 450 t/h | 2 x 3.7 kW | 5.2 t |
| GZD-1300×4900 | 1,300 x 4,900 mm | 650 mm | 300 – 650 t/h | 2 x 5.5 kW | 6.8 t |
| GZD-1500×6000+ | 1,500 x 6,000 mm | 750 mm | 450 – 800 t/h | 2 x 7.5 – 11.0 kW | 9.5 t |
Ordering Nomenclature Guide: GZD - [Trough Width mm] x [Trough Length mm] - [Grizzly: With/Without] - [Liner: Hardox 500] - [Ex].
Constant Metered Feeding Under Massive Hopper Head Loads
Engineered to withstand heavy dead-weight material impact directly beneath storage bin discharge chutes.
Heavy-Armor Hardox 500 Liners
Trough bottom and side walls are protected by modular 16-20mm Hardox 500 bolt-on wear liners for maximum abrasion life.
Integrated Stepped Grizzly Bars
Optional stepped tapered grizzly section removes natural fines before the primary crusher, increasing crushing throughput by up to 25%.
Stepless Variable Frequency Inverter Speed
Variable frequency controller enables 0-100% stepless feed rate adjustment to perfectly match downstream conveyor requirements.

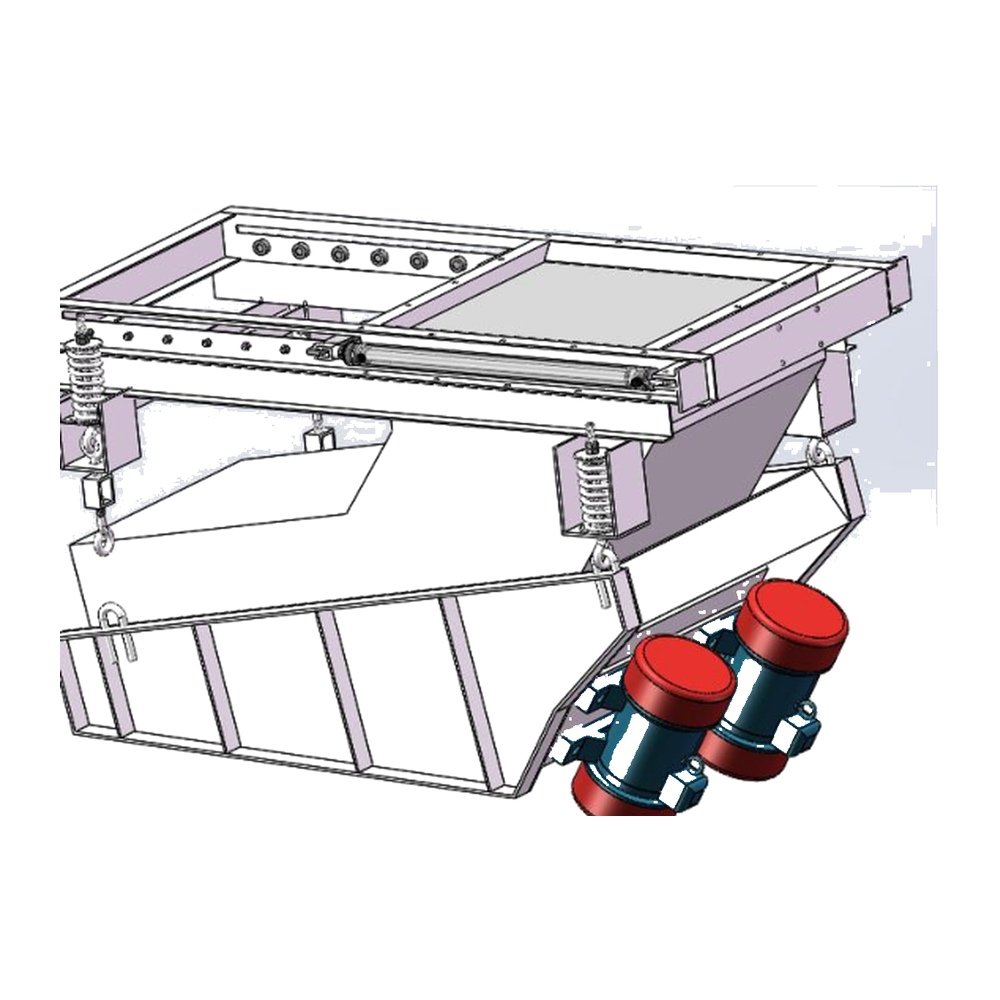

Reinforced Suspended / Foot Isolation Springs
Heavy-duty rubber-cushioned composite steel coil springs absorb high impact shocks when loading from dump trucks.
Proven in Severe Plant Environments
Delivering high thrust and zero-drift actuation across critical heavy industrial facilities.
Primary Jaw Crusher Feed Bins
Regulating feed from raw haul trucks and dumpers into primary jaw and gyratory crushers.
Underground Mining Ore Passes
Heavy-duty bunker discharge under underground vertical ore passes and skip loading pockets.
Coal Fired Power Plant Reclaim
Reclaiming raw coal from ground storage piles and surge hoppers onto boiler feed belts.
Port Shiploading Hoppers
Controlled discharge from wharf grab hoppers to prevent belt choking and spillage.
