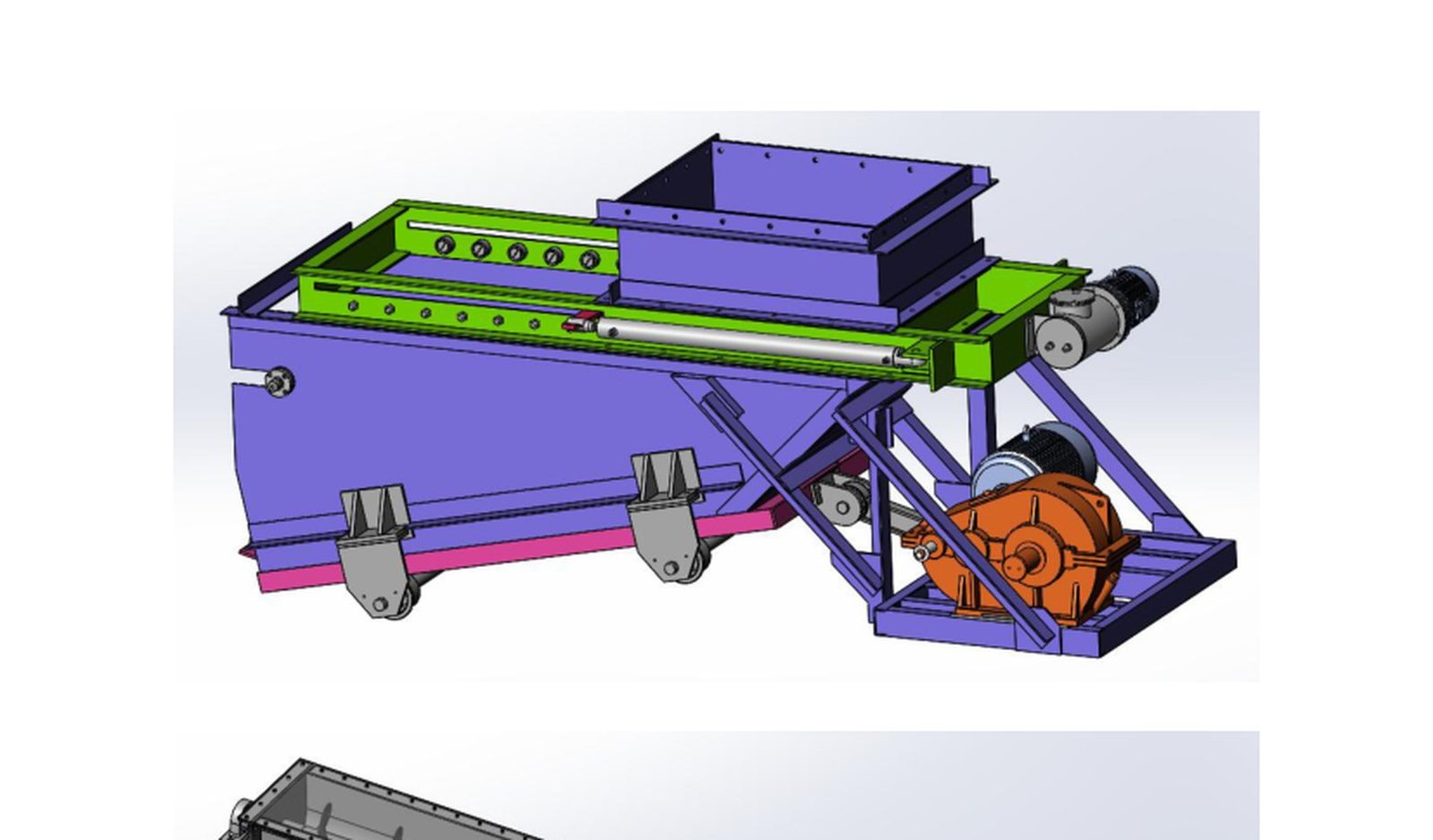

Hydraulic Heavy-Duty Vibrating Feeder
HSX HVF Series hydraulic vibrating feeders utilize centralized or integrated hydraulic exciter motors to deliver high-amplitude, high-torque vibration for the most demanding high-tonnage feed duties. Ideal for heavy metallurgy, iron ore sintering, and severe mining environments where electric vibration motors face overheating or hazardous ambient risks.
Model Series & Engineering Parameters 5 Heavy Hydraulic Capacities
| Model Series | Trough Size (W x L mm) | Max Feed Lump (mm) | Capacity (t/h) | Hydraulic Motor Disp. | HPU Power (kW) |
|---|---|---|---|---|---|
| HVF-1035 | 1,000 x 3,500 mm | 400 mm | 150 – 350 t/h | 160 cm³/rev | 15.0 kW |
| HVF-1240 | 1,200 x 4,000 mm | 500 mm | 250 – 550 t/h | 200 cm³/rev | 22.0 kW |
| HVF-1545 | 1,500 x 4,500 mm | 650 mm | 400 – 800 t/h | 250 cm³/rev | 30.0 kW |
| HVF-1850 | 1,800 x 5,000 mm | 750 mm | 600 – 1,000 t/h | 315 cm³/rev | 45.0 kW |
| HVF-2060+ | 2,000 x 6,000 mm | 900 mm | 800 – 1,200 t/h | 400 cm³/rev | 55.0 kW |
Ordering Nomenclature Guide: HVF - [Width dm][Length dm] - [Hydraulic: Variable Disp.] - [Liners: Hardox 500] - [Ex].
Instantaneous Proportional Feed Control under Severe Conditions
Hydraulic drive delivers massive starting torque and stepless remote flow throttling with zero motor burnout risk.
Full-Range Proportional Flow Throttling
Hydraulic proportional directional valves enable instantaneous 0-100% feed volume throttling within 0.5 seconds for precision batching.
Extreme Heavy-Head Load Start Capability
High fluid-power starting torque starts the feeder smoothly even when the trough is buried under 30 tons of deadweight ore.
High Ambient & Hot Media Resilience
Hydraulic drive components operate reliably around hot metallurgical sinter (up to 300°C) where electric motor insulation fails.
Inherently Explosion-Proof Design
Since electrical drives can be located remotely in clean pressurized rooms, the feeder is natively safe for Class I Div 1 volatile zones.
Proven in Severe Plant Environments
Delivering high thrust and zero-drift actuation across critical heavy industrial facilities.
Blast Furnace Hot Sinter Feeding
Controlled discharge of hot, abrasive sinter cakes directly onto screening lines.
Underground High-Pressure Ore Pockets
Starting smoothly under deep bunker ore pressure in unventilated underground stopes.
Continuous Train Batch Loading Systems
Millisecond volumetric cutoff into railway car loading hoppers for exact axle-weight compliance.
High-Throughput Port Reclaim Hoppers
Rapid feed adjustment for high-speed ship loading belts handling changing density bulk minerals.
Request Technical Quotation & Sizing Proposal
Submit your required parameters, operating duty, or project drawings for Hydraulic Heavy-Duty Vibrating Feeder. Our export engineering team will review your specifications and provide an official quotation within 24 hours.
